Pigment vermell 242-vermell Corimax 4RF

Llista de paràmetres de producte

Índex de colors núm.Pigment Red 242
Nom del producteCorimax Red 4RF
Categoria del ProductePigment orgànic
Solidesa a la llum (recobriment)7
Resistència a la calor (recobriment)180
Solidesa a la llum (plàstic)7-8
Resistència a la calor (plàstic)280
Color
Pigment-Vermell-242-Color
Distribució de tonalitats

Aplicació :

Recommended for automotive paints, industrial paints, powder coatings, printing pastes, PVC, rubber, PS, PP, PE, PU, water based inks, solvent inks, UV inks
Recomanat per a recobriments arquitectònics, recobriments de bobines, tintes offset.


Pigment Red 242 has a yellowish red or large red phase, and is excellent in solvent resistance and acid / alkaline resistance. It is mainly used for coloring of plastics such as PVC, PS, ABS, and polyolefins. It is heat-resistant to 300 ° C (1 / 3SD) in HDPE, but it affects dimensional deformation. It is suitable for the coloring of raw pulp of polypropylene and resistance to migration in soft PVC. It has medium tinting strength; it is also recommended for coatings, automotive coatings, anti-glazing paints, and heat-resistant 180 ° C; for high-end printing inks, such as PVC film and metal decorative printing inks, laminated plastic films, etc.

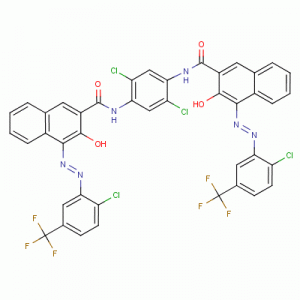

Estructura molecular:

English name: C.I.Pigment Red 242
English alias: Pigment vermell 242; PR242; Sandorin Scarlet 4RF; 2-Naphthalenecarboxamide, N, N '-(2,5-dichloro-1,4-phenylene) bis- [4-[[2-chloro-5- ( trifluoromethyl) phenyl] azo] -3-hydroxy-3-hydroxy-; (4Z, 4'E) -N, N '-(2,5-dichlorobenzene-1,4-diyl) bis (4-{[2- chloro-5- (trifluoromethyl) phenyl] hydrazono} -3-oxo-3,4-dihydronaphthalene-2-carboxamide); 4- [2-chloro-5- (trifluoromethyl) phenyl] azo-N- [2,5- dichloro-4-[[4- [2-chloro-5- (trifluoromethyl) phenyl] azo-3-hydroxy-naphthalene-2-carbonyl] amino] phenyl] -3-hydroxy-naphthalene-2-carboxamide; N, N '-(2,5-dichloro-1,4-phenylene) bis [4-[[2-chloro-5- (trifluoromethyl) phenyl] azo] -3-hydroxynaphthalene-2-carboxamide] CAS number: 52238-92-3
EINECS number: 257-776-0
Molecular formula: C42H22Cl4F6N6O4
Molecular weight: 930.4643
Density: 1.57g / cm3
Boiling point: 874.8 ° C at 760 mmHg
Flash point: 482.8 ° C
Vapor pressure: 2.96E-32mmHg at 25 ° C

Synthetic principle: 2-chloro-5-trifluoromethylaniline is added to a hydrochloric acid medium, and an aqueous solution of sodium nitrite is added to carry out the diazotization reaction; the diazonium salt is reacted with 2-hydroxy-3-naphthoic acid to produce Mono-azo dyes are reacted with sulfoxide in o-dichlorobenzene to be converted into acid chloride derivatives; and then subjected to a condensation reaction with 2,5-dichloro-1,4-phenylenediamine to produce crude azo condensation products, CI pigment red 242 was prepared by pigmentation.
