Pigment taronja 16-Corimax taronja BRN

Technical parameters of Pigment orange 16

Índex de colors núm.Pigment taronja 16
Nom del producteCorimax Orange BRN
Categoria del ProductePigment orgànic
Número CAS3520-72-7
Número de la UE222-530-3
Família químicaDisazo
Pes molecular623.49
Fórmula molecularC32H24CI2N8O2
Valor del PH7
Absorció d’oli (ml / 100g)%35
Solidesa a la llum (recobriment)5
Resistència a la calor (recobriment)180
Solidesa a la llum (plàstic)6
Resistència a la calor (plàstic)200
Resistència a l'aigua5
Resistència al petroli4
Resistència a l’àcid4
Resistència a Alkali4
Distribució de tonalitats

Aplicació :

Recommended for powder coatings, printing pastes, PVC, rubber, PP, PE, offset inks, water-based inks, solvent inks
Suggested for PS, PU, UV inks.

TDS(Pigment-orange-16) MSDS(Pigment-orange-16)


Informació relacionada

There are 36 types of pigment commercial dosage forms, and they still have a certain market in Europe, America and Japan. It gives a yellowish orange color, which is significantly redder than the C.I. pigment orange 13 and pigment orange 34. Mainly used in printing inks, and can be used to adjust the color light of C.I. Pigment Yellow 12. Resinized formulations have high transparency, but poor fluidity. Due to their poor fastness properties, they are mostly used for packaging inks with high transparency and low cost.

Aliases: 21160; C.I.Pigment Orange 16; P.O.16; Dianisidine Orange; 2,2'-[[3,3'-dimethyl(1,1'-biphenyl)-4,4'-diyl]bis(azo)]bis(3-oxo-N-phenyl-Butanamide]; 2,2'-[(3,3'-dimethoxybiphenyl-4,4'-diyl)di(E)diazene-2,1-diyl]bis(3-oxo-N-phenylbutanamide)

InChI: InChI=1/C34H32N6O6/c1-21(41)31(33(43)35-25-11-7-5-8-12-25)39-37-27-17-15-23(19-29(27)45-3)24-16-18-28(30(20-24)46-4)38-40-32(22(2)42)34(44)36-26-13-9-6-10-14-26/h5-20,31-32H,1-4H3,(H,35,43)(H,36,44)/b39-37+,40-38+

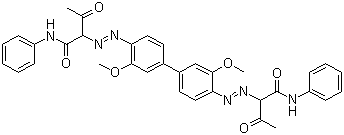

Estructura molecular:

Physical and chemical properties

Solubility: Do not dissolve in water and ethanol, dissolve in concentrated sulfuric acid, and show orange precipitate after dilution.
Hue or light: red light orange
Relative density: 1.28-1.51
Bulk density / (lb / gal): 10.6-12.5
pH value / (10% slurry): 5.0-7.5
Oil absorption / (g / 100g): 28-54
Covering power: translucent
